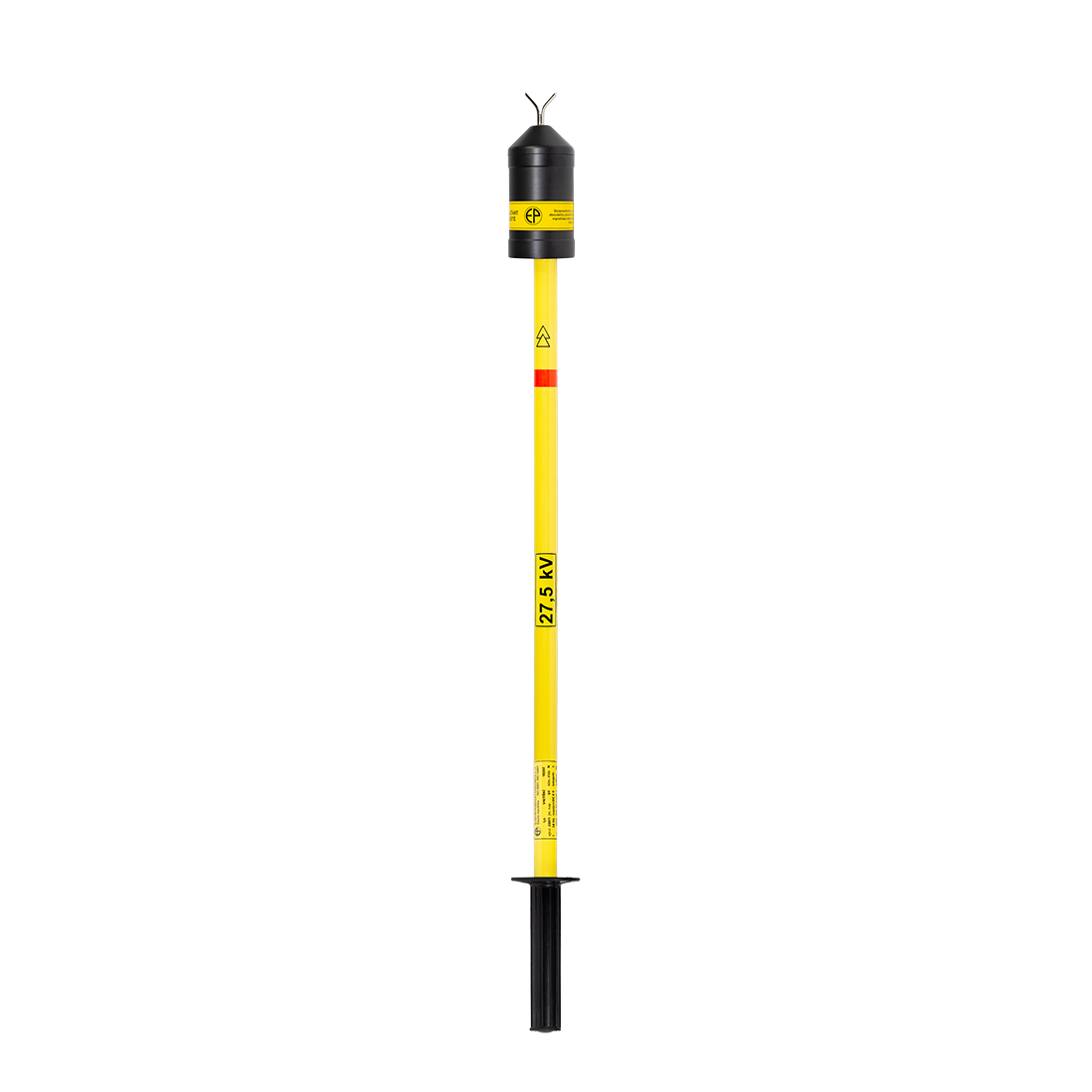

Catalog number: 102025
Rated tester voltage: 27,5 kV
The tester is designed for use in an electrical network with a nominal voltage of 25 kV.
This type of testers is used for medium voltage detection with a frequency of 50 Hz on electrical equipment. Voltage presence on a contact point is signalized by optical and sound signal. The sound signal is generated by piezoceramic sounder with shrill fluctuating tone. The optical signaling consist of two flashing bright red LEDs. Proper functioning of the tester including the condition of its power supply cells is controlled by a testing button. While pressed, the tester must deliver both, an optical and sound signal. The tester is equipped by built-in electrical circuit permanently monitoring the condition of power supply cells. If their voltage drops below the limit set, the circuit automatically blocks the optical and sound signaling. Subsequently, the tester does not deliver any signal when the testing button is pressed. In this case it is necessary to replace the power supply cells.
The testers are designed for indoor and outdoor operation with regular climatic conditions (regular climatic category with temperatures ranging from -25°C to +55°C). However, the testers can only be used outdoors when the atmospheric conditions comply with the conditions which allow – according to safety regulations – to work on live parts under voltage. It means that they may not be used in rain, fog, or snow.
The testers are supplied in casing.
